Name: Ubiquiti Networks Enterprise Campus 24 PoE, 10x10Gbe + 8x2.5GbE + 2x25Gbe SFP28, Layer3, PoE+++ 1050W, Etherlighting
Brand: Ubiquiti Networks
SKU: 74826
Price: 30990.00 SEK
Availability: InStock

Ubiquiti Networks ECS-24-PoE

Enterprise-class 24-port Layer 3 Etherlighting PoE+++ switch with high-capacity 10GbE RJ45 and 25G SFP28 ports for a high-availability system design.Highlights:(16) 10 GbE, (8) 2.5 GbE ports, all PoE+++ (90 W capable) (2) 25G SFP28 ports (2) Included hot-swappable power supply modules for redundancy (4) Included hot-swap fan modules with a backupTechnical data:Mechanical Dimensions 442 x 496 x 44 mm (17.4 x 19.5 x 1.7 inches) Weight Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.3 kg (20.5 lb) Walking material SGCC steel Sliding rail support The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and post depths from 650 to 1,000 mm (25.6–39.4"). Hardware Management interface Ethernet in-band Network interface (16) 10/5/2.5/1 GbE, 100/10 MbE RJ45 ports (8) 2.5/1 GbE, 100/10 MbE RJ45 ports (2) 25/10/1G SFP28 ports PoE interface (24) 90W PoE+++ (pair A 1, 2+ 3, 6-) (pair B 4, 5+

26 port

Art.nr: 74826

Butikslager

Beställningsvara (3-4 dagar)

{$antal} {$enhet} i fjärrlager

30 990 kr

1 191,92 kr / port

Produktspecifikation

Anslutningar

Antal RJ-45	24
Typ av Ethernet-portar	10G Ethernet (100/1000/10000)
Antal 2.5G ethernetportar (koppar)	8
Antal 10G ethernetportar (koppar)	16
Antal SFP-modulplatser	2

Power over Ethernet (PoE)

Typ av PoE (Power over Ethernet) som stöds	PoE+, PoE++ (4PPoE)
Power over Ethernet (PoE)-effekt per port	90 W
Strömförsörjning via Ethernet (PoE) stöd	Ja
Total Power over Ethernet (PoE)-budget	1050 W

Data transmission

Adresstabellstorlek	128000 poster
Jumbo Frames stöd	Ja
Switch kapacitet	460 Gbit/s
Hastighet vid vidarebefordran	342,24 Mpps
Paketbuffertminne	8 MB
Genomströmning	230 Gbit/s

Management features

Switch lager	L2/L3
Switch typ	hanterad

Design

Produktens färg	Grå
Rackmontering	Ja
Formfaktor	1U
Material, hölje	SGCC

Bevakning

IGMP-snooping	Ja
Loopskydd	Ja

Nätverk

10G stöd	Ja
Broadcast Storm-kontroll	Ja
Datahastighet för Ethernet-LAN	10,100,1000,2500,5000,10000 Mbit/s
VLAN-stöd	Ja
VLAN-funktioner	Voice VLAN
Överföringsbegränsning	Ja

Miljökrav

Intervall för relativ operativ luftfuktighet	10 - 90%
Temperatur vid drift	-5 - 40 ° C

Strömtillförsel

Strömförbrukning (max)

2400 W

Vikt & dimension

Höjd	43,7 mm
Bredd	442,4 mm
Djup	496 mm
Vikt	9,46 kg

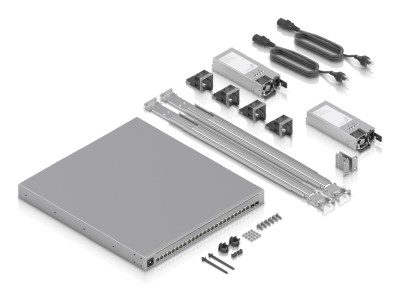

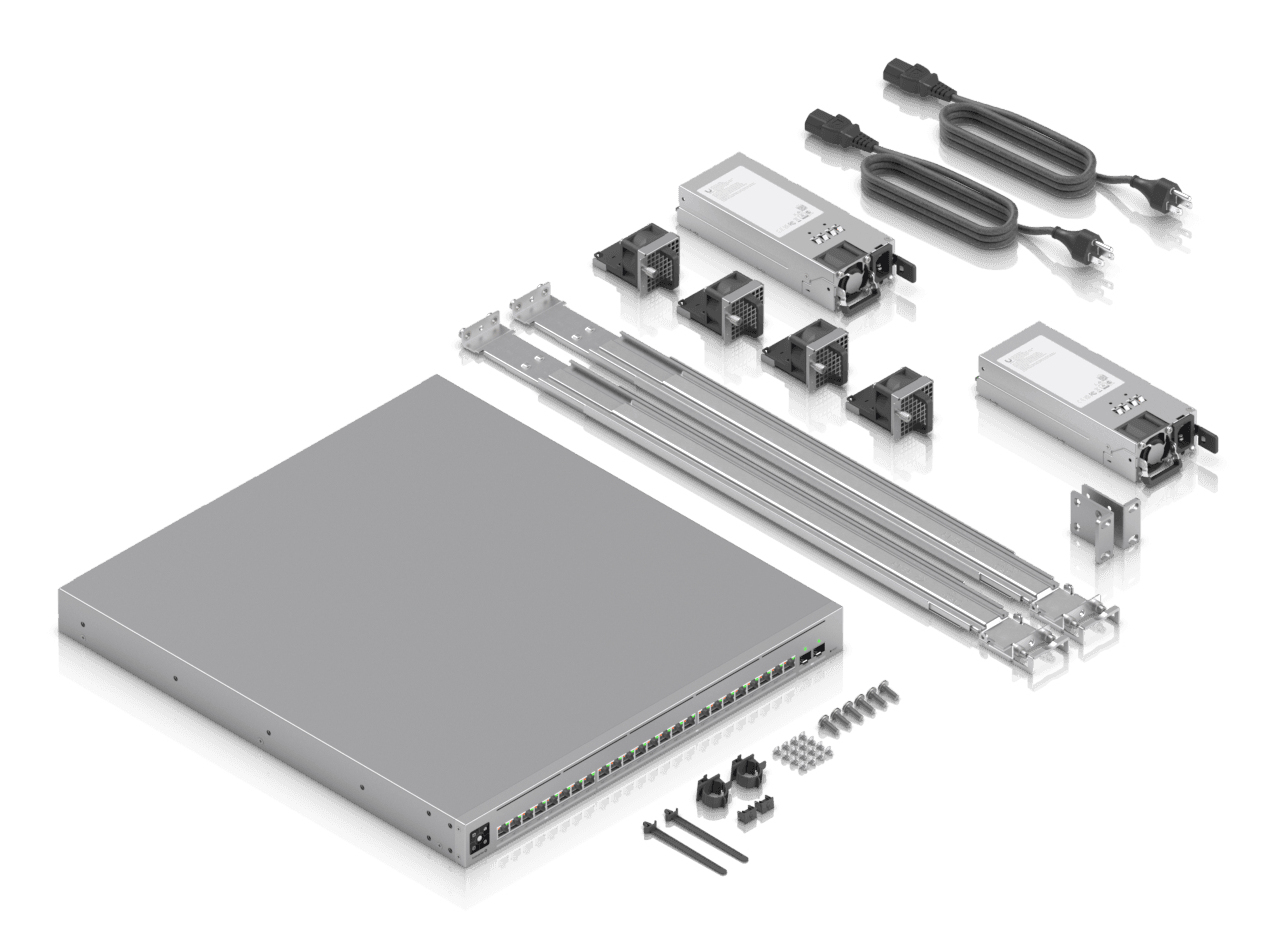

Förpackningens innehåll

Kabel inkluderad	Energiljus
Rackmonteringssats	Ja
Monteringsfästen ingår	Ja

Fabrikat

Tillverkare	Ubiquiti Networks
SKU	ECS-24-PoE
